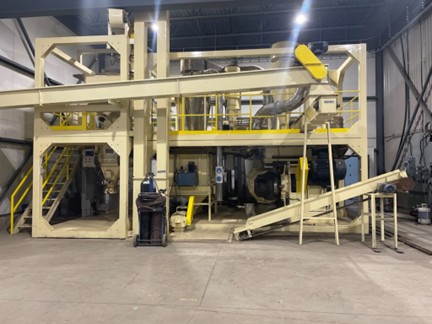

4 Ton/hrs complete rebuilt Wood Pellet Plant.

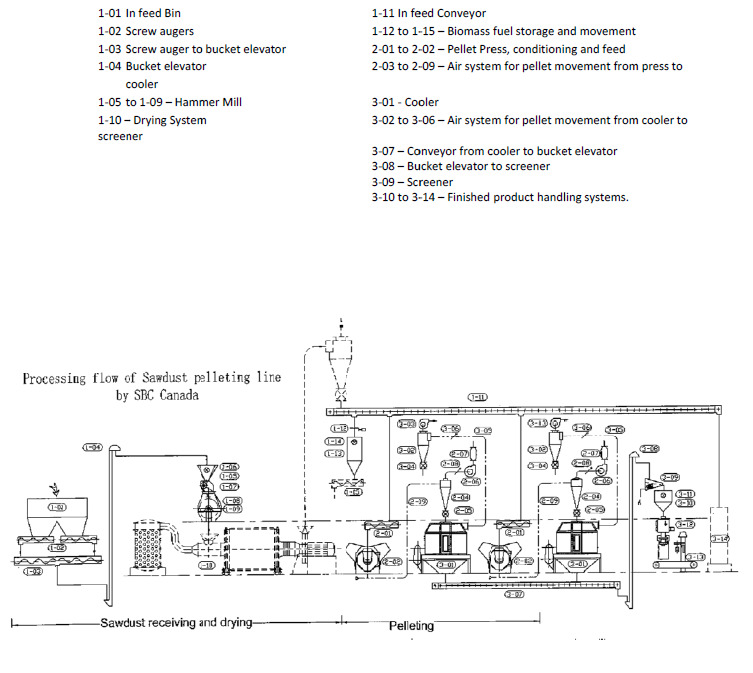

4 Tons/Hres complete Wood Pellet Plant:

- Sawdust Raw Materials receiving line.

- 247 Cu. Ft. Intake Hopper.

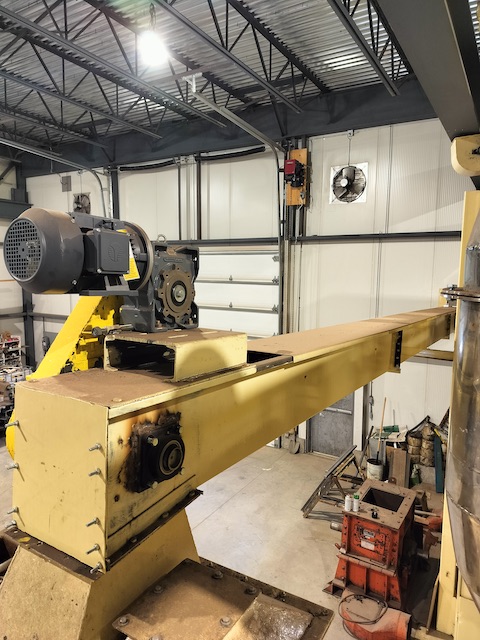

- 3 HP Screw Conveyor x 80” long - Cap 423Cu/Ft/Hr.(SDLS525).

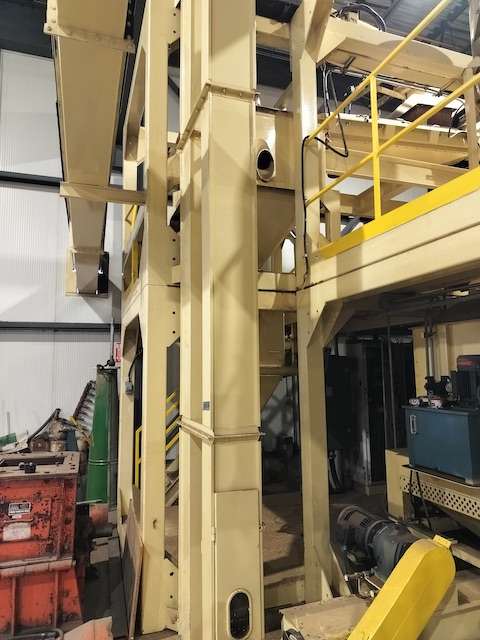

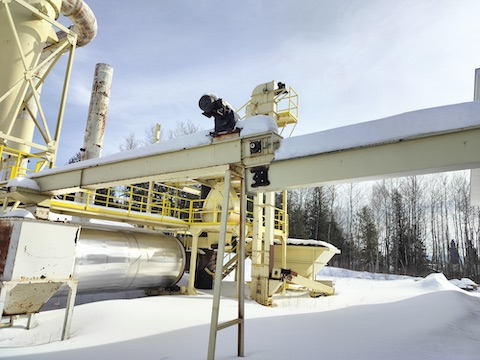

- 5 HP x 25‘0“ High Bucket - Cap 5-6FT/S (SDDTG36/18).

- 45 Cu FT Grinding Bin.

- Rotary Paddle Upper Level Indicator.

- 1.5 HP Impeller Feeder  - Cap 5Ton/HR (SDRF5).

- 200 HP Hammer Mill (SDHM6).

- Auto Load Controller.

- 47.2” cyclone (55-1200).

- 5 HP Rotary Air Lock (SDGFYZ).

- 75 HP Hi Pressure Blower (9-26-6-3C).

- Air Piping.

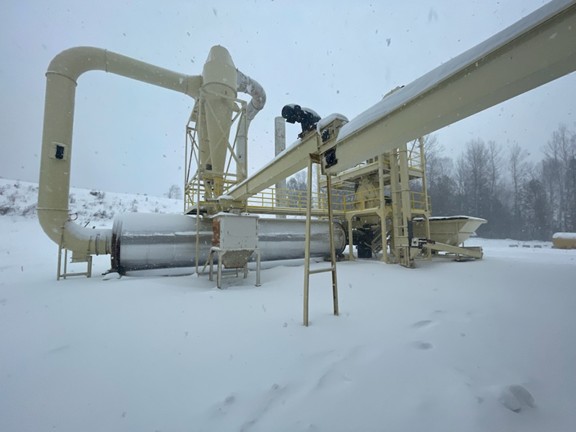

Rotary Drum Dryer Complete Systems:

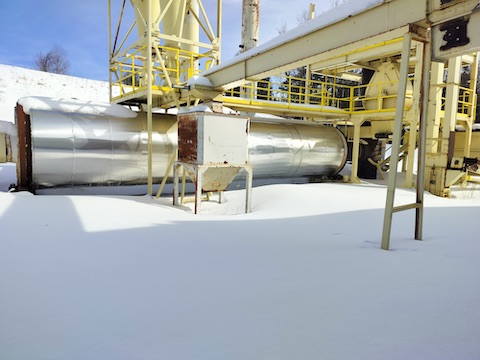

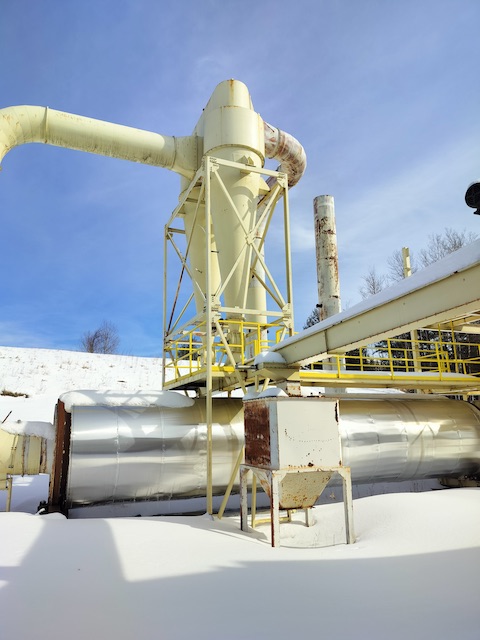

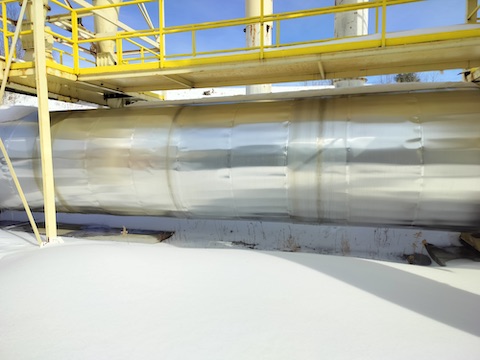

- 7 Ft. Dia x 40Ft long Single Pass Rotary Drum Dyer (HG-2200-12000).

- Dust Cyclones System with Airlocks.

- Connecting Piping.

- Fan 100 HP x 1150 RPM.

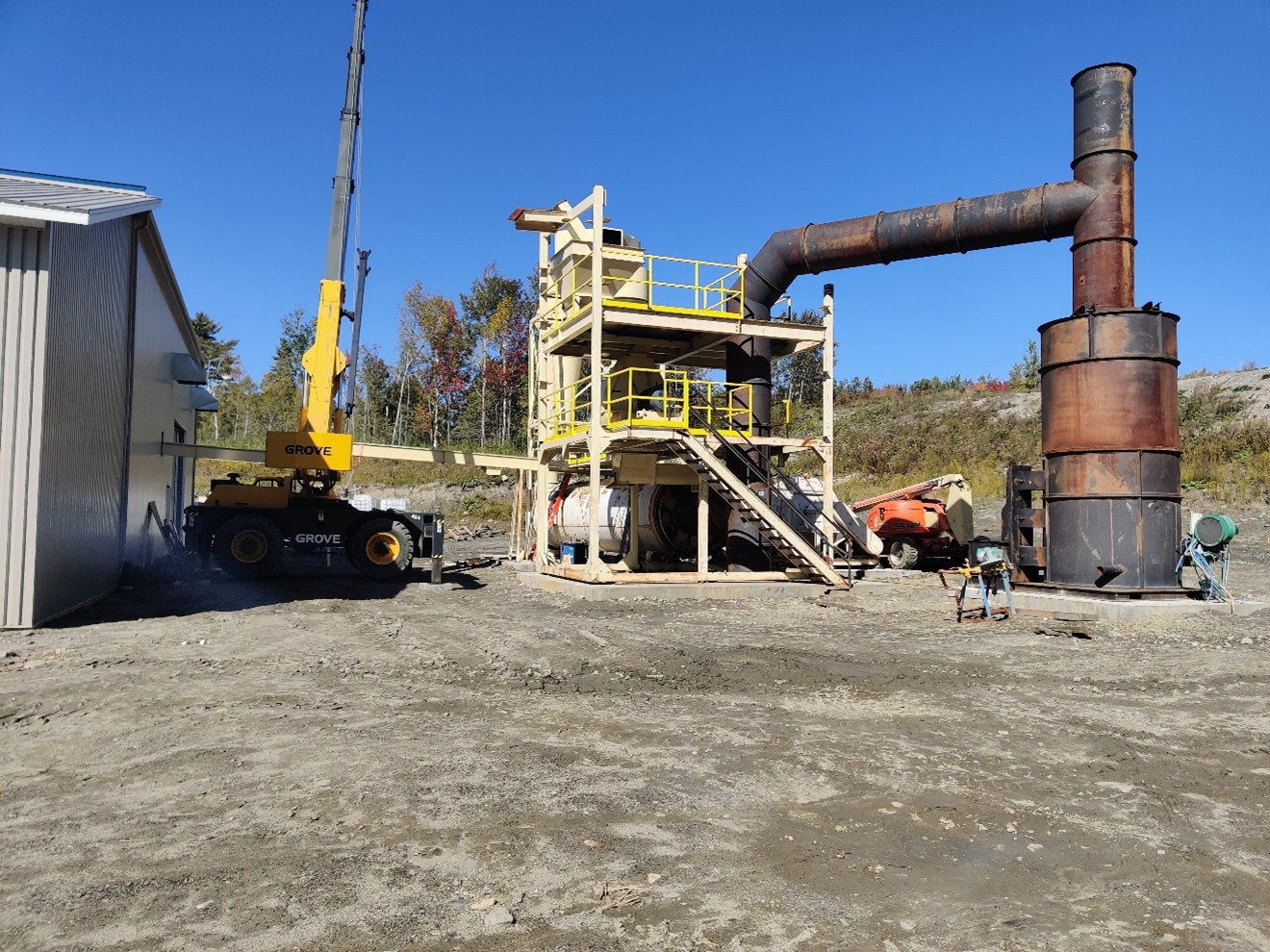

- Gaz Bio/Mass Burner with Pipe & Hardware Connection.

- Collecting Conveyers with Motors & drivers.

(2) Pelleting systems having each:

- Pellet Mill feeder Bin Cap 81 CU Ft.

- Rotary Paddle Upper/Lower Level Indicator.

- 10 HP Live Bottom Bin (SDTD150).

- 3 HP Screw Feeder Cap 3 Ton/Hr (For SDPM520).

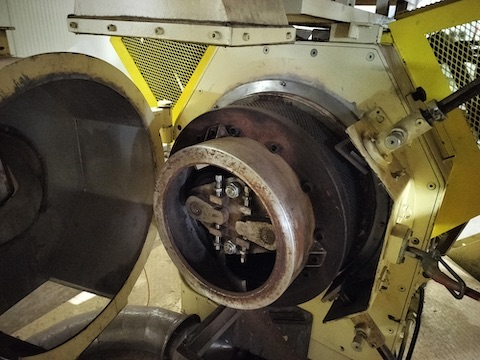

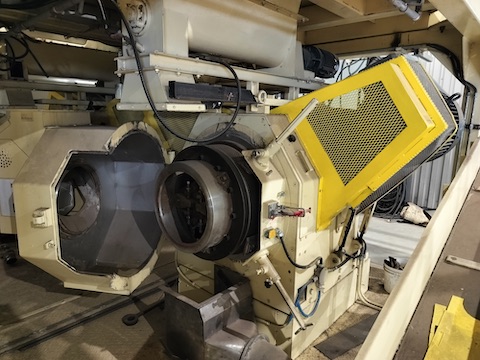

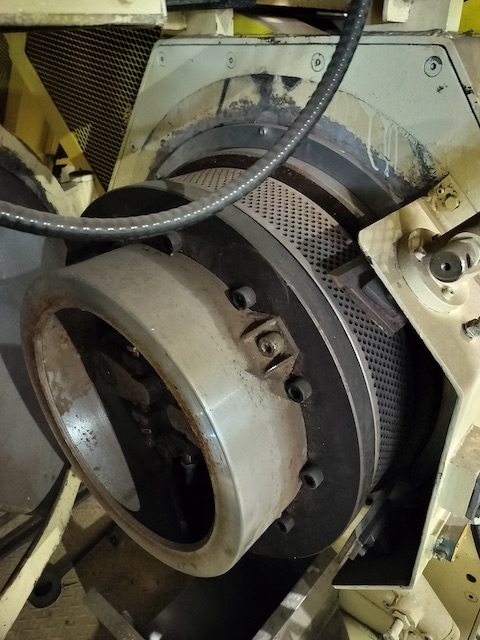

- Two 200 HP (2x100 HP/Mill) - Cap 2Ton/Hr @ 6MM Pellet size (SDPM520) with

  Twin Motor V-Belt Pellet Mill Having 20.5“ ID Die x 2 Rolls assembly.

- Automatic Greasing System.

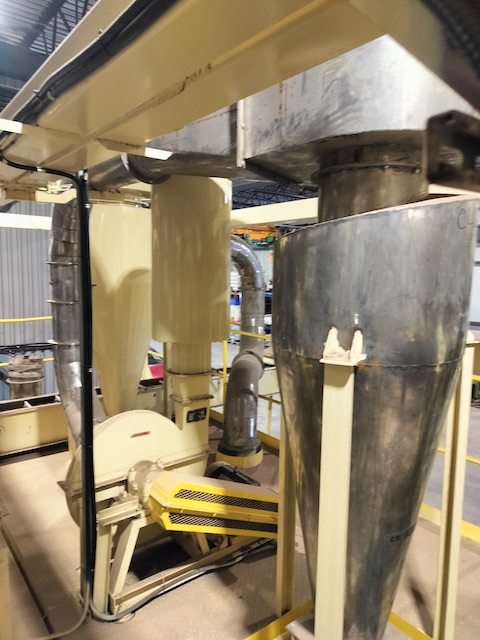

- 27.5“ Dia Cyclone.

- 2 HP Rotary Airlock (SDGFY20).

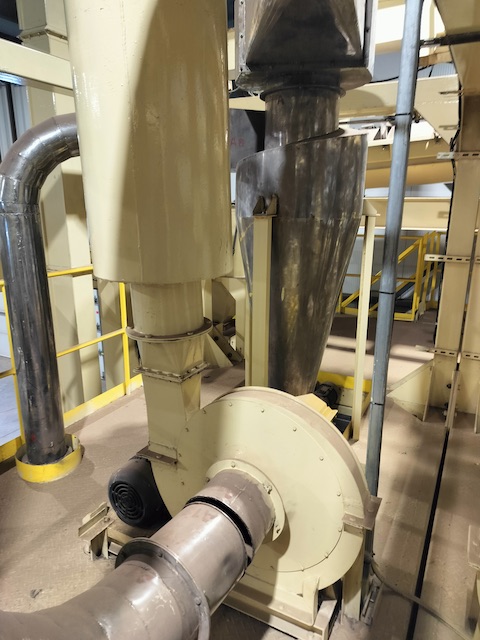

- 20 HP HI Pressure Blower (9-19-5A).

- With complete air Piping.

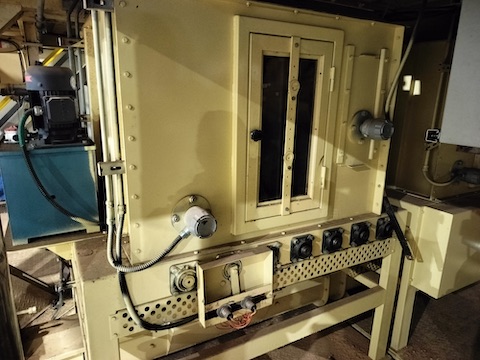

- Counterflow Cooler x 2 HP - Cap 3ton/hr (SDCC5A).

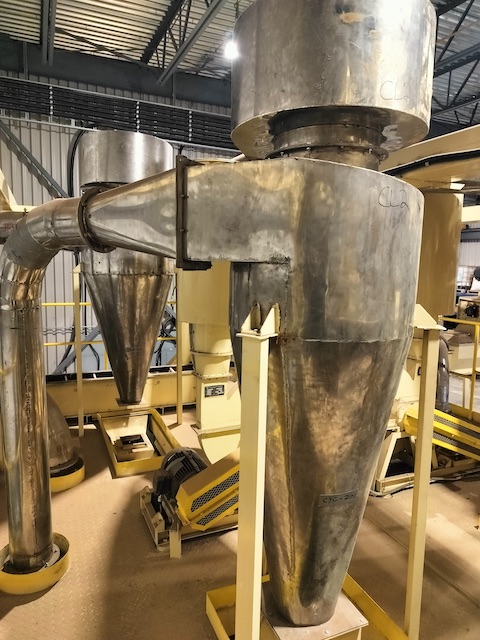

- 28.6” Dia , SS Cyclone.

- Rotary Airlock by 2 HP (SDGFY20).

- 15 HP High Pressure Blower (9x19x54).

- SS Piping.

- 47.3“ Dia SS Cyclone (50-1200).

- 15 HP Blower (4-72-5C).

- Rotary Airlock x 2HP (SDGFY7).

- SS Air Piping for Cooler.

- Transaction Hopper.

- Screw Feeder by 2 HP  - Cap 1Ton/Hr (SDWLL16).

- Two Way Pneumatic Gate (SDSTQ25x25).

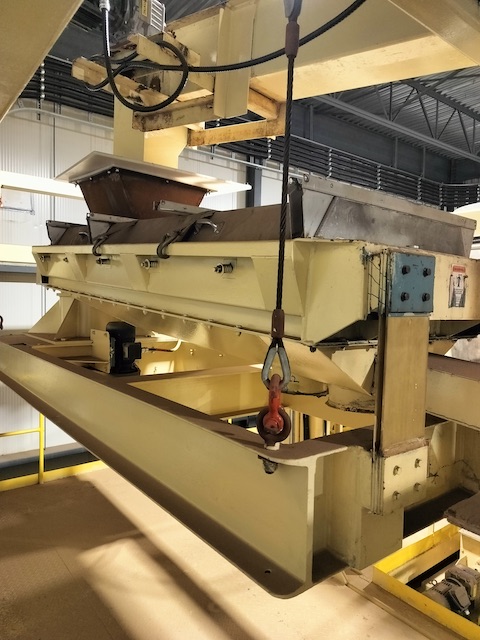

- Screener Single Deck Sprout Model 2.5x6 Roto -Shaker x 1 HP Cap - 1.3 Ton/Hr (SDVS 0.4).

- Cable Suspending Assembly for above.

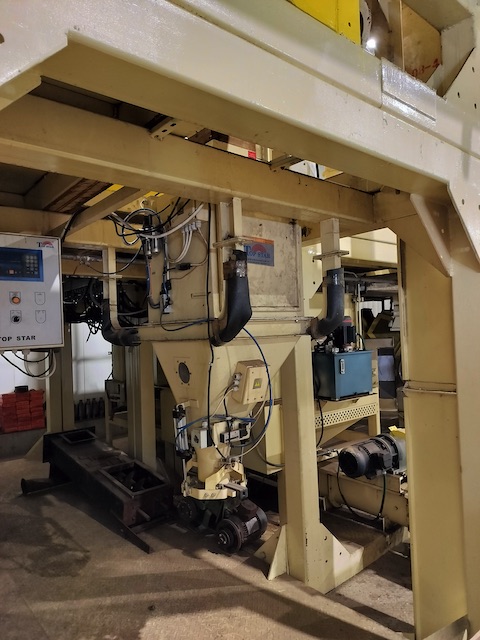

Bagging System:

- 31 Cu Ft Packing Hopper.

- Rotary Padles Upper / Lower Level Indicator.

- Bagging Scale - 50Kg/Bag (LCS520).

- 2.5 HP Sealer and Belt Conveyor.

Electrical Components:

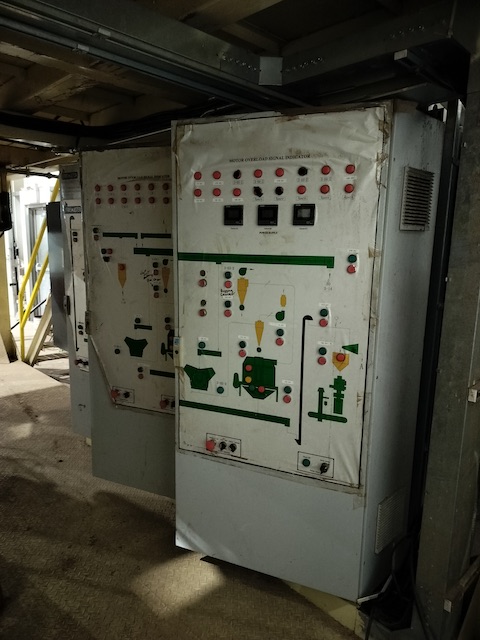

- Electrical Control Panel (575-3-60).

- All Motors and Reducers.

- All Electric Switches & 3 Phases Starters.

Special Notes:

- Spare Parts available as Extra.(See in Documents below).

- Plant purchases new and Ran a Couple of Years.

- Price does not include dismantle.

- Can supply a Technician to commission the plant once dismantle.
